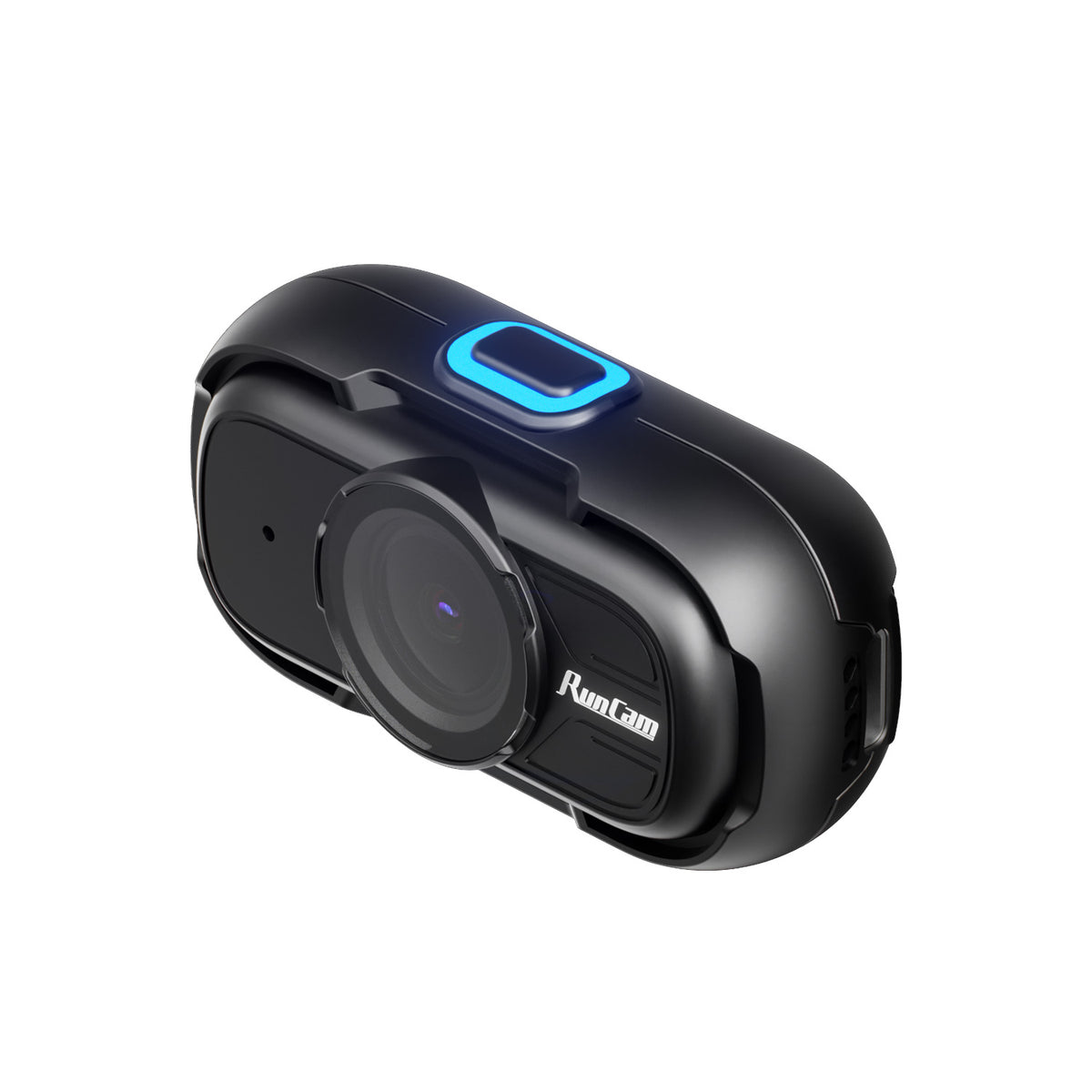

New features of RunCam Firmware V2.0.0

• 1. The default is H.265 BUILD-IN mode.
• 2. Added Video gop,Video encode mode and USB mode configuration options to FeedConfig
• 3. Added UAC audio input support
• 4. Added USB transmission of IMU data and USB command control
• 5. Fixed other bugs

Before Updating:

• — Ensure the device is connected to a stable 5V USB-C power source during the upgrade process to avoid interruption.
• — Do not power off or remove the microSD card during the firmware upgrade process.

• HOW TO UPDATE?

• 1.Download and extract the firmware package on a computer to obtain the "Feed.bin" file.
• 2. Copy the "Feed.bin" file directly to the root directory of the microSD card (do not place it in any folder, and do not rename the file).
• 3. Insert the microSD card into the device and power it using a stable 5V USB-C power source.
• 4. After power-on, the device will automatically detect the firmware file on the microSD card and enter update mode.
• 5. During the update, the blue LED flashes twice with a 3-second interval in a repeating cycle, with no sound indication. The update takes approximately 3 minutes. Do not disconnect power or perform any other operations during the update.
• 6. After the update is completed, the device gives 1 long beep ("beep——") and powers off automatically.

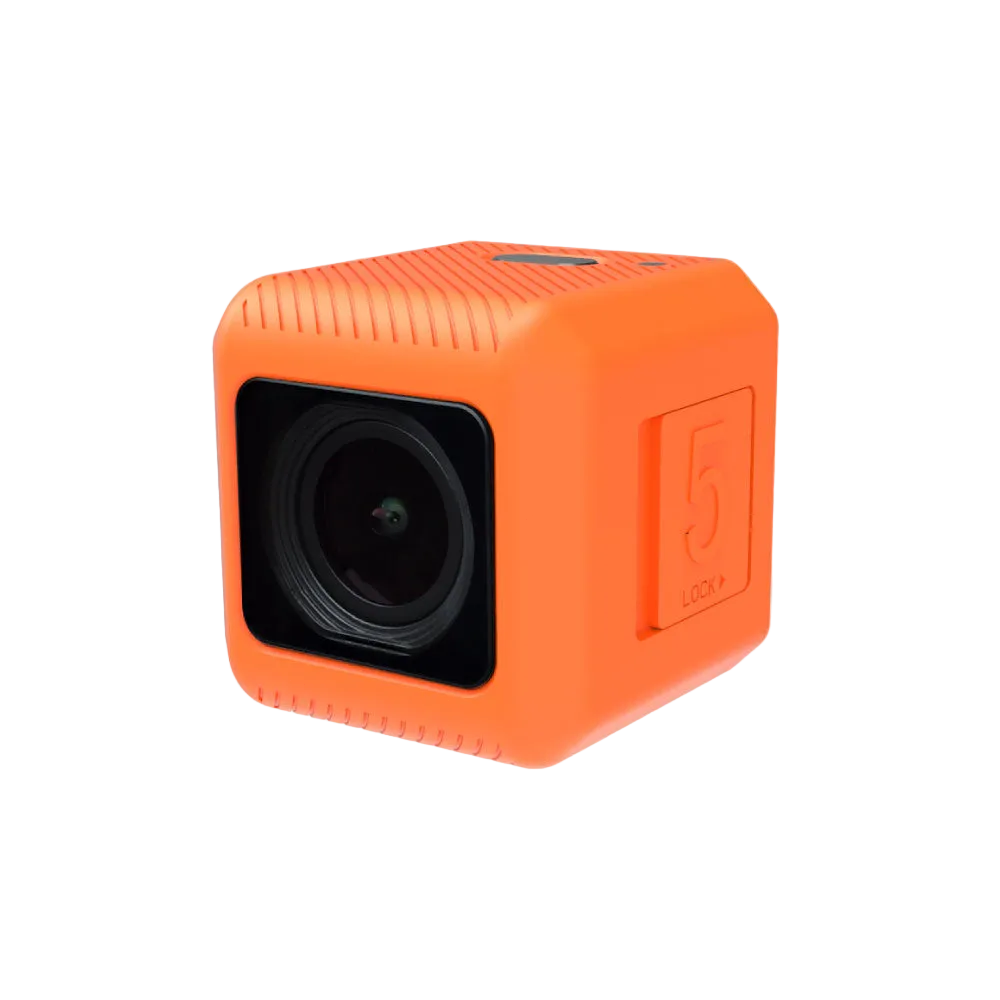

• HOW TO UPDATE?

The classic method (manually copy the firmware file onto the SD card).

• Firmware Upgrade (It would be better to upgrade when the battery is fully charged)
• 1. After downloading the firmware, unzip the downloaded file, find the RC5-OR.BRN file and copy it to the root directory of the microSD card. The firmware name should be confirmed as RC5-OR.BRN.
• 2. Disconnect from the computer, powering the camera via the mobile charger. And then turn on the camera with the micro SD card inserted. The camera will automatically update the firmware.
• 3. During the updating process, Blue light and Green light blink alternately.
• 4. After about 2-3 minute, the camera will automatically shut down, the upgrade has completed.

• HOW TO UPDATE?

The classic method (manually copy the firmware file onto the SD card).

• (Note: Do not power off or remove the SD card during the firmware upgrade process.)
• Firmware Upgrade

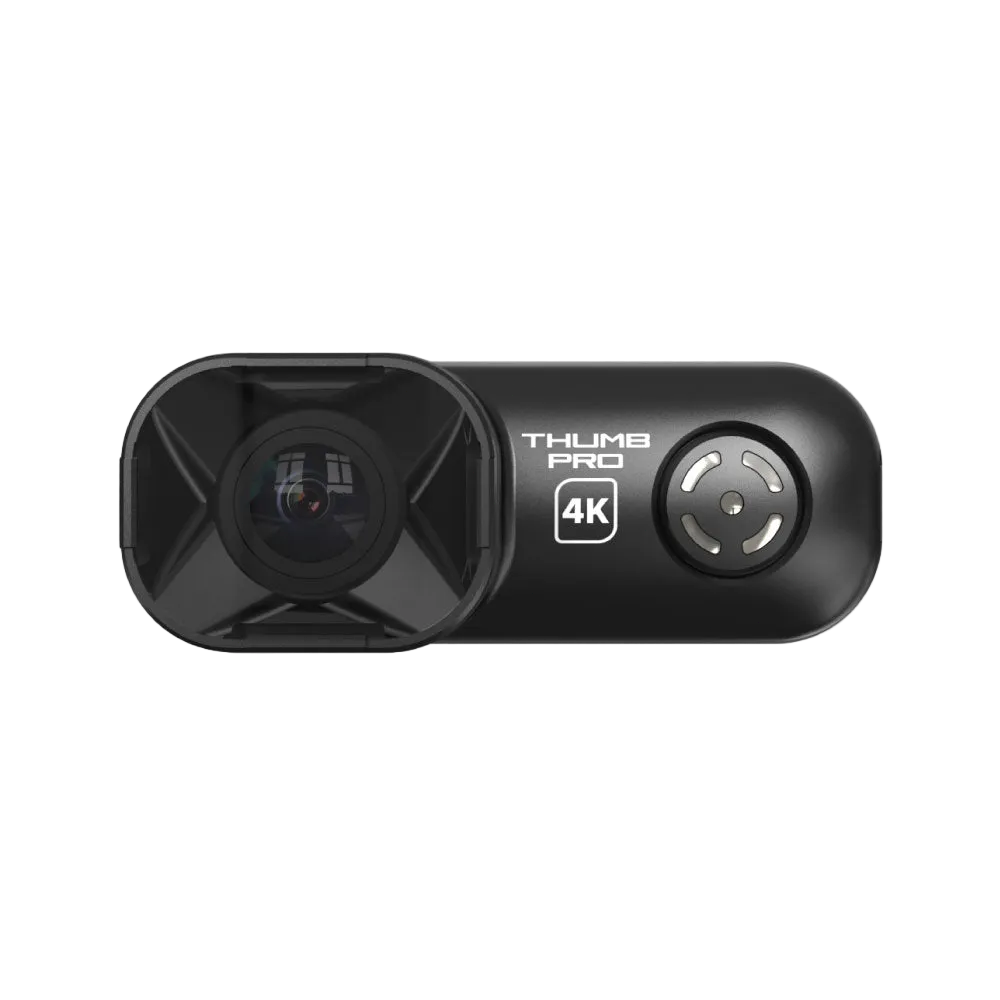

• 1. After downloading the firmware, unzip the downloaded file, find the Thumb-P.BRN file and copy it to the root directory of the microSD card. The firmware name should be confirmed as Thumb-P.BRN.
• 2. Disconnect from the computer, powering the camera via the mobile charger. And then turn on the camera with the micro SD card inserted. The camera will automatically update the firmware.
• 3. Green light flashes while firmware is upgrading.
• 4. After about 2-3 minute, the camera will automatically shut down, the upgrade has completed.

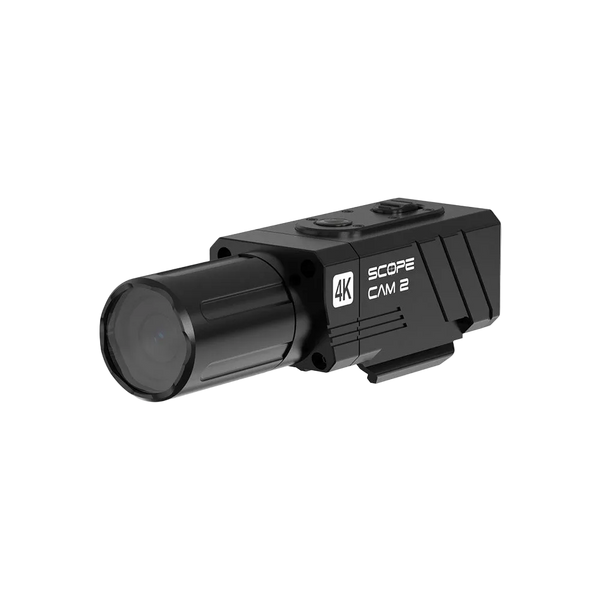

• HOW TO UPDATE?

the classic method (manually copy the firmware file onto the SD card).

• Firmware Upgrade (It would be better to upgrade when the battery is fully charged)

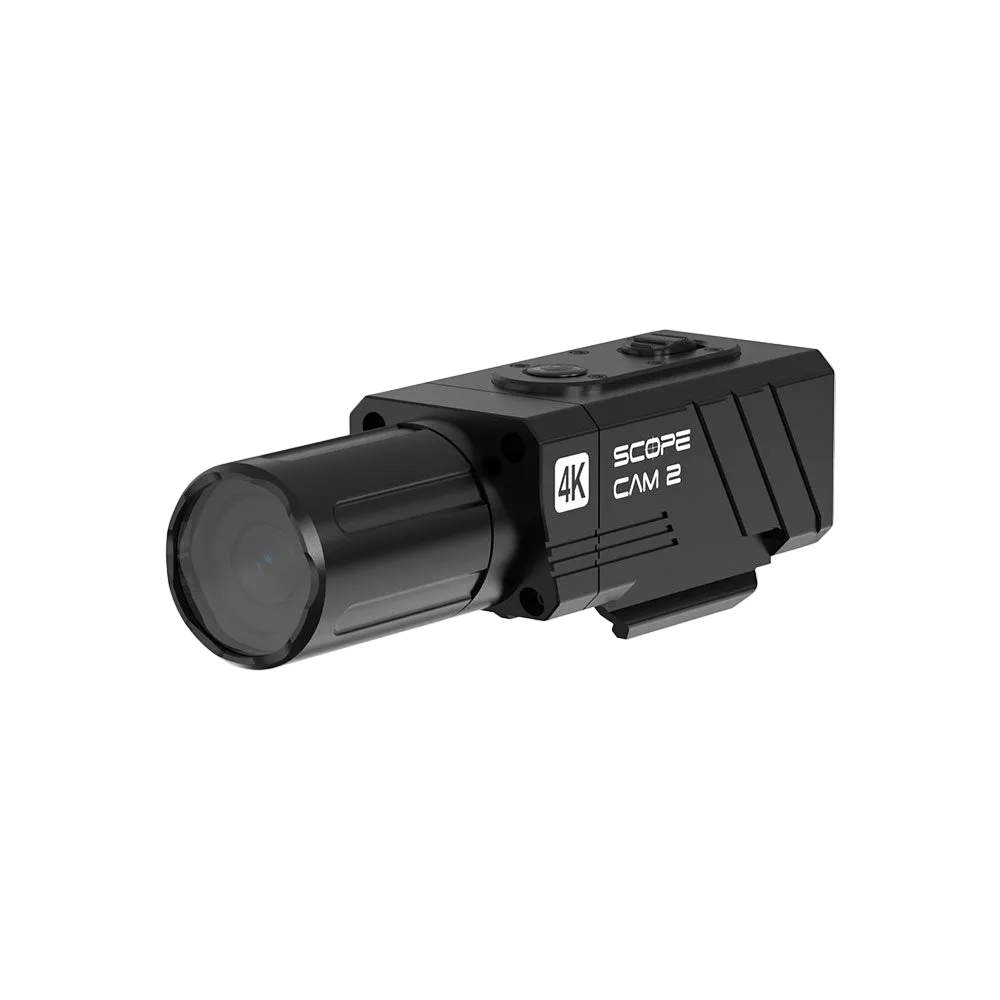

• 1. After downloading the firmware, unzip the downloaded file, find the SC024K.BRN file and copy it to the root directory of the microSD card. The firmware name should be confirmed as SC024K.BRN.

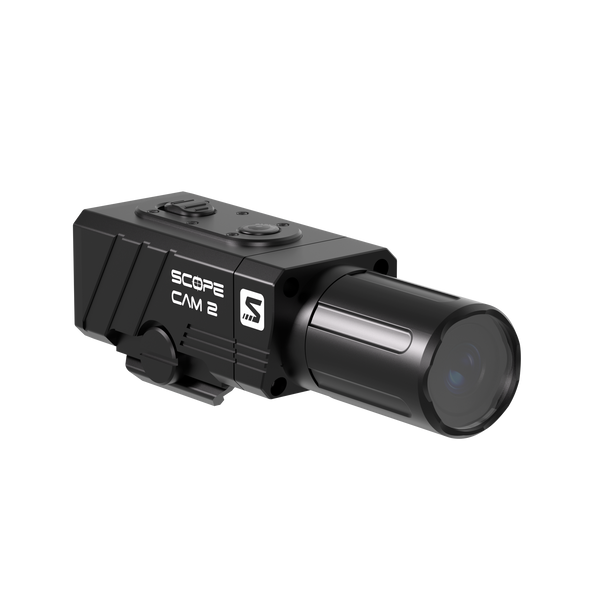

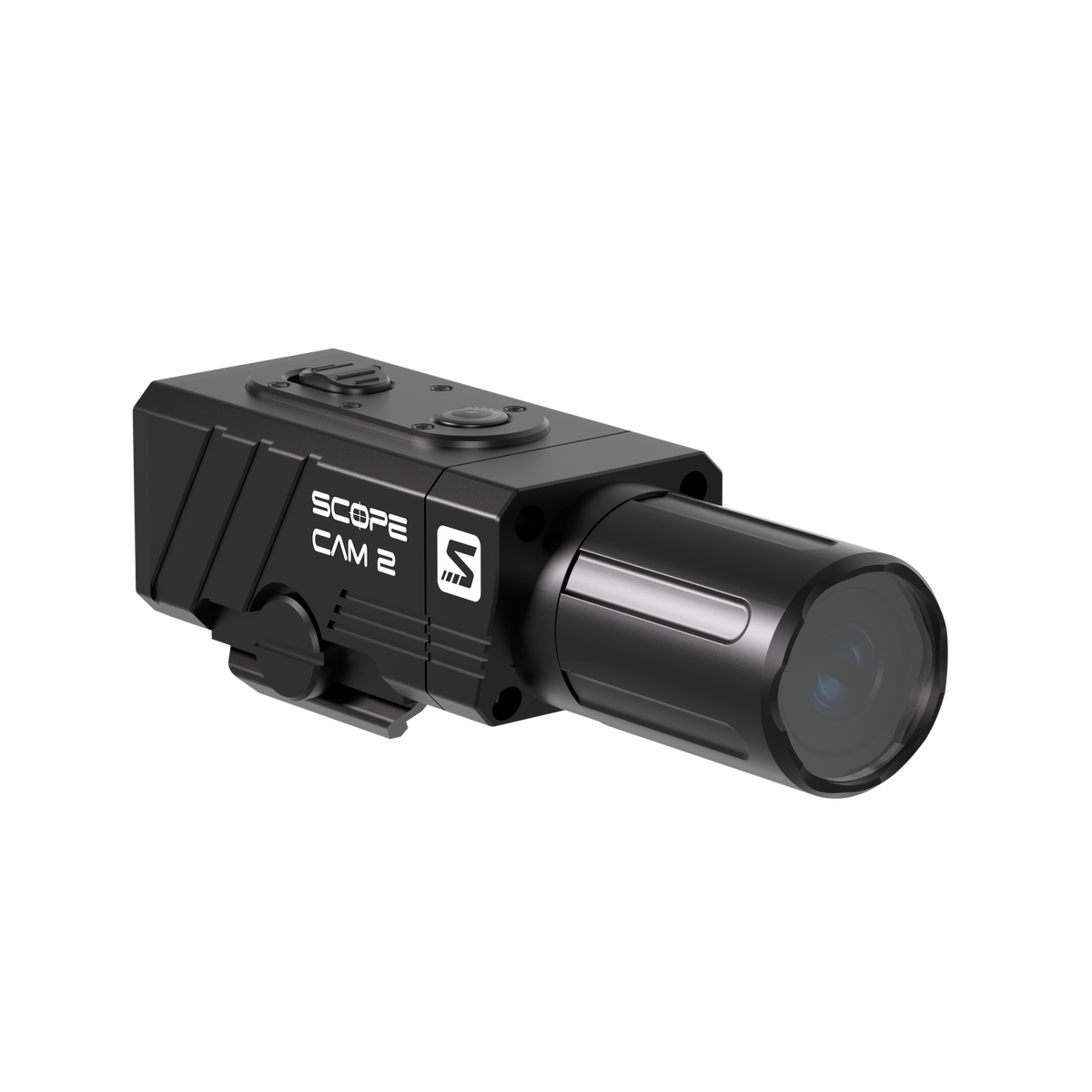

• 2. Disconnect from the computer, powering the camera via the mobile charger. And then turn on the Scope Cam with the micro SD card inserted. The camera will automatically update the firmware.
• 3. Blue light blinks slowly while firmware is upgrading.
• 4. After 2 minute, the camera will automatically shut down,upgrade has completed.

• HOW TO UPDATE?

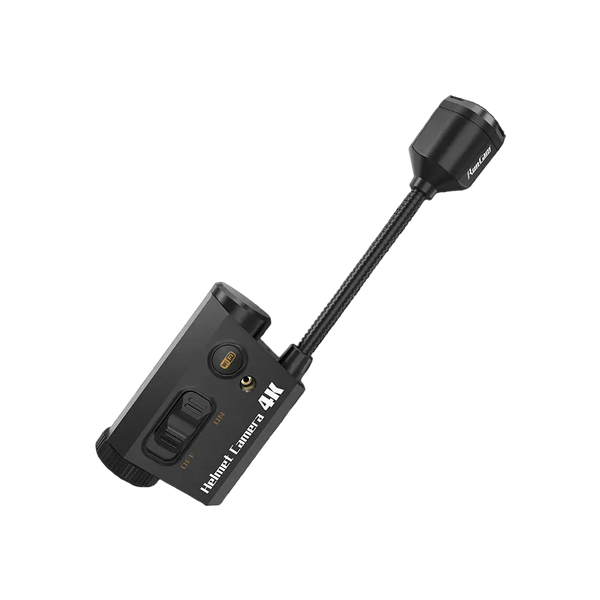

The classic method (manually copy the firmware file onto the SD card). Firmware Upgrade (It would be better to upgrade when the battery is fully charged)

• Firmware Upgrade (It would be better to upgrade when the battery is fully charged)
• 1. Prepare a microSD card (exFAT format).

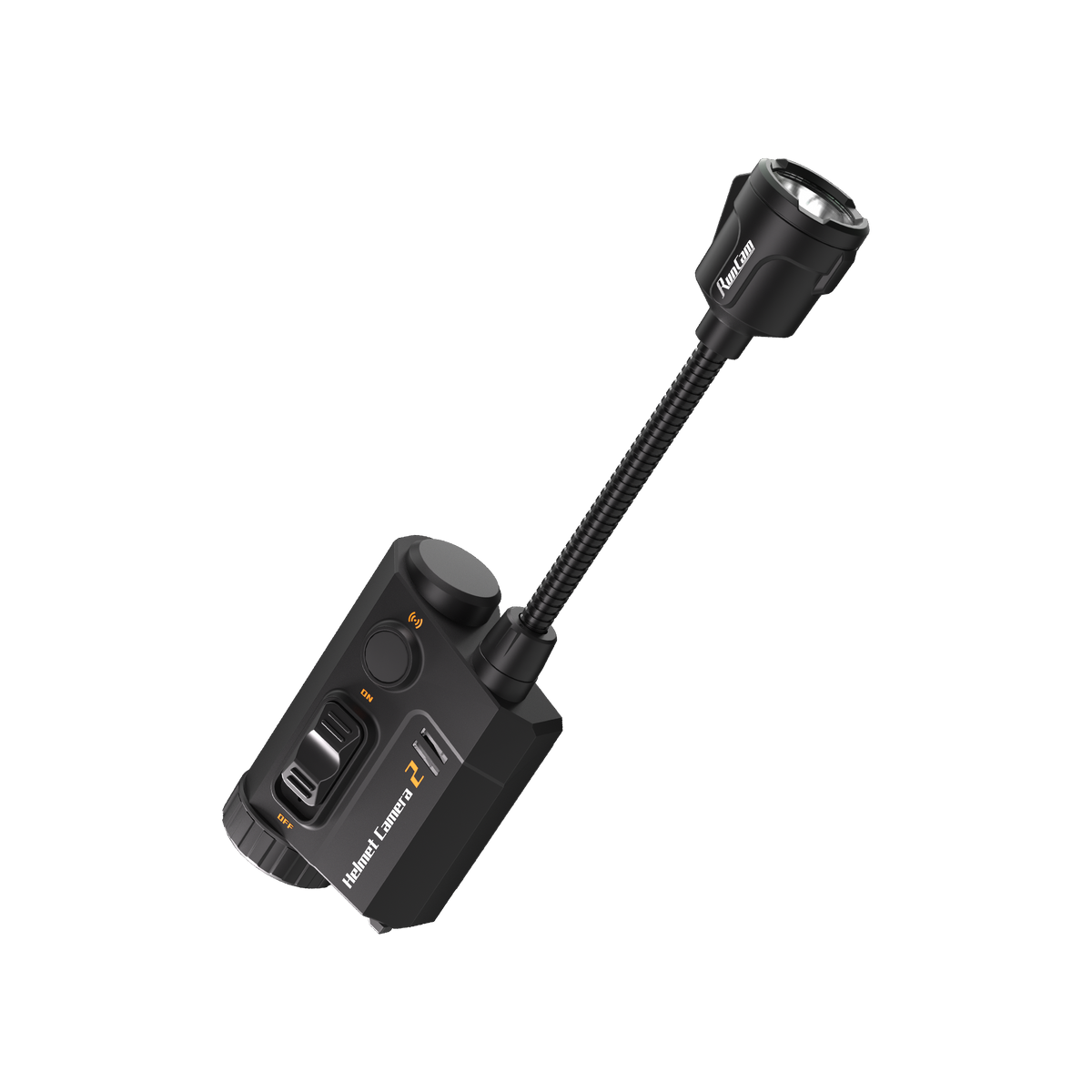

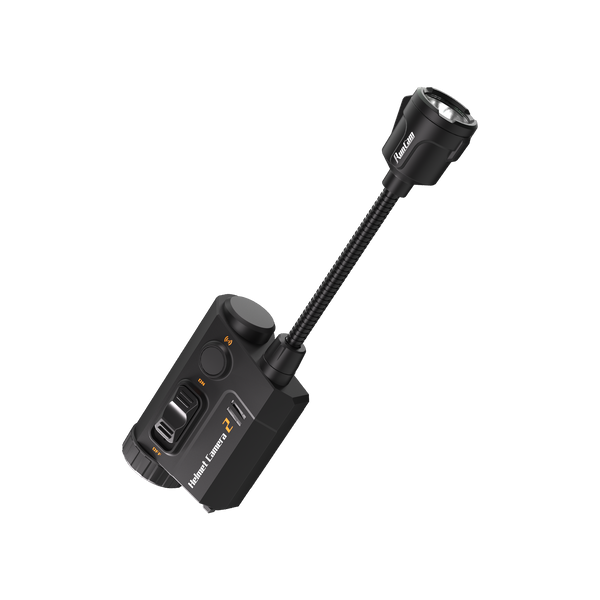

• 2. Download and extract the downloaded file to obtain the Helmetcam2.bin file. Copy and paste it to the root directory of the microSD card. Do not put the file into any folders or change its file name.
• 3. With the microSD card inserted in, power on the camera, and it will automatically detect to update the firmware.
• 4. During firmware upgrade, the lights will flash alternatively.
• 5. When the update finishes, the camera will vibrate 5 times and auto power off.
• 6. Please reboot the camera for using.

• HOW TO UPDATE?

The classic method (manually copy the firmware file onto the SD card).

• (Note: Do not power off or remove the SD card during the firmware upgrade process.)

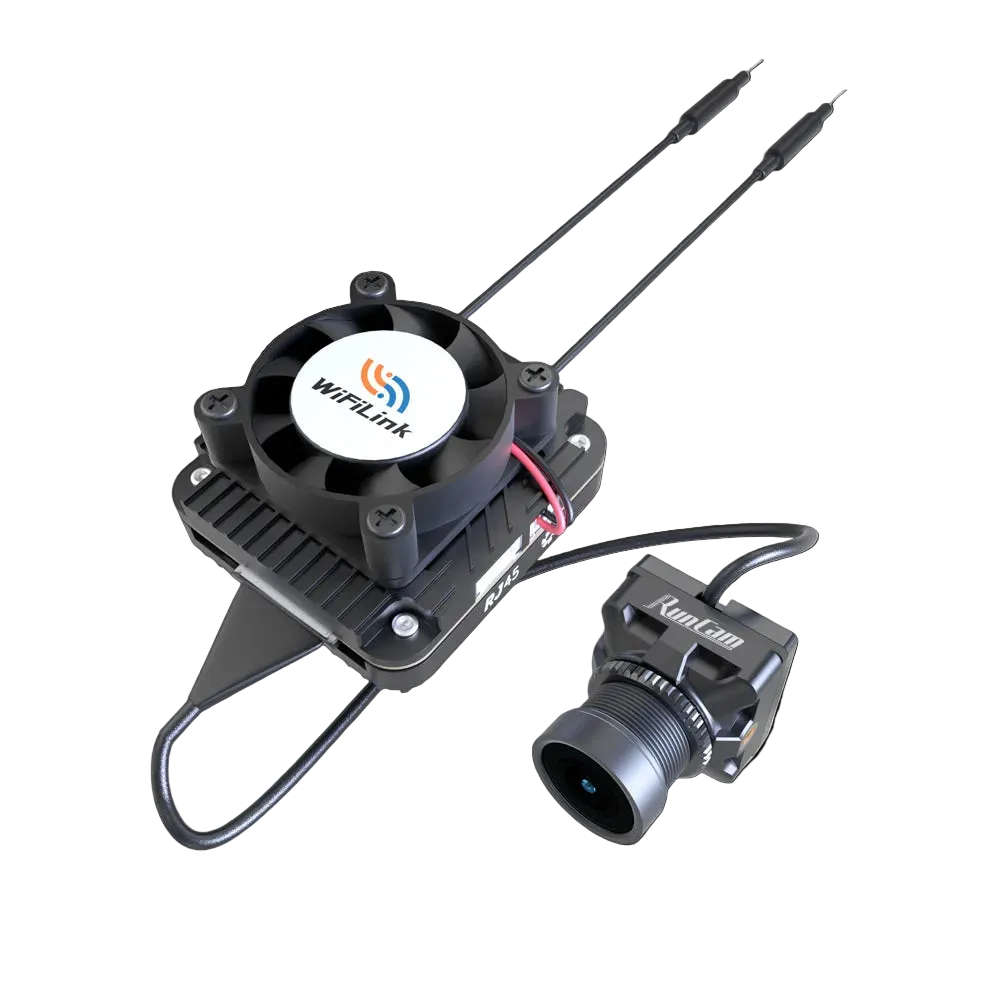

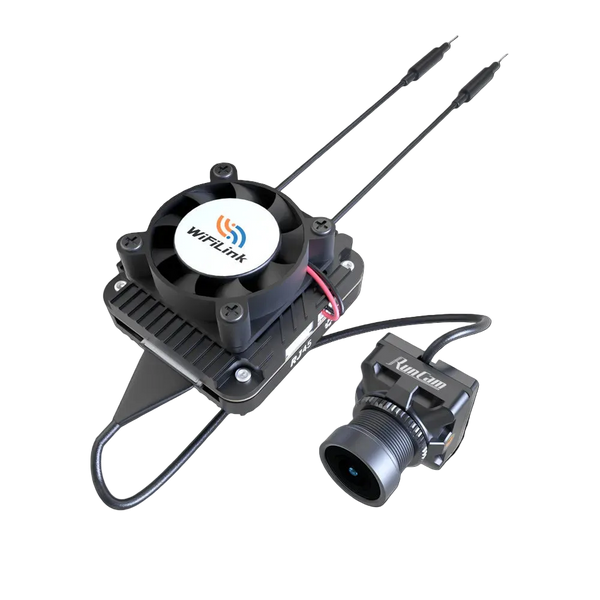

• 1.Copy the “WiFiLink-part0.bin” and “WiFiLink-part1.bin” card flashing files to the root directory of an empty SD card.
• 2. Insert the SD card into the camera's main board and power it on. The camera will automatically enter upgrade mode (about 15 seconds).
• 3. Once the upgrade is complete (about 1 minute), the green light will stay on and the SD card content will be cleared. After re-powering, a new configuration file (“gs.key” and “user”) will be generated on the SD card.

HOW TO UPDATE?

The classic method (manually copy the firmware file onto the SD card).

• (Note: Do not power off or remove the SD card during the firmware upgrade process.)
• Firmware Upgrade

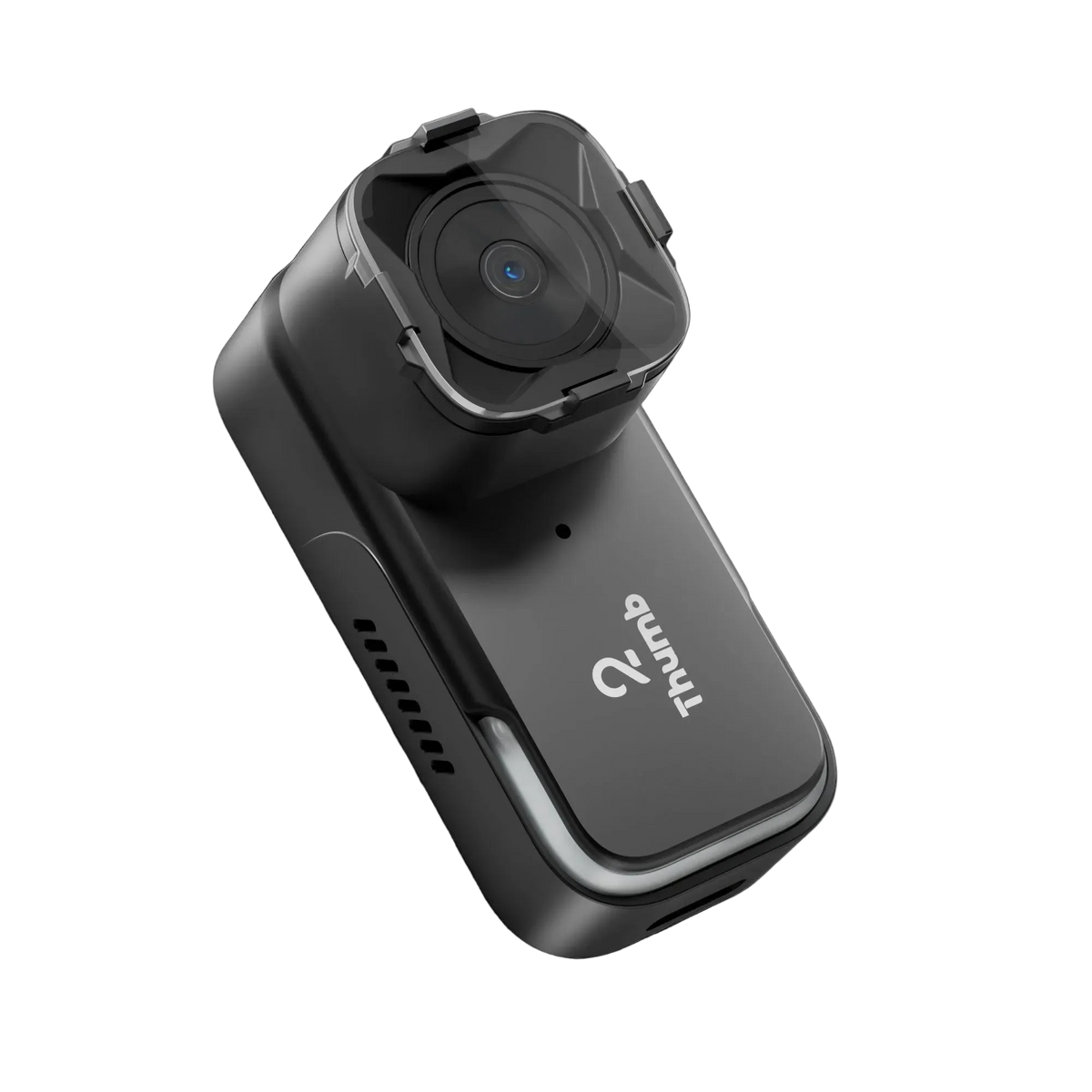

• 1. After downloading the firmware, extract the downloaded file to get Thumb2.bin file.
• 2. Copy the file to a microSD card directly, please do not place the file into any folders, and the firmware name should be confirmed as Thumb2.bin.
• 3. Insert the microSD card to the camera, power on the camera. The camera will automatically detect to update the firmware, with red and green light flashing.
• 4. After about 2-3 minute, the upgrade will complete, and the camera will automatically shut down.

• HOW TO UPDATE?

The classic method (manually copy the firmware file onto the SD card).

• Firmware Upgrade (It would be better to upgrade when the battery is fully charged)

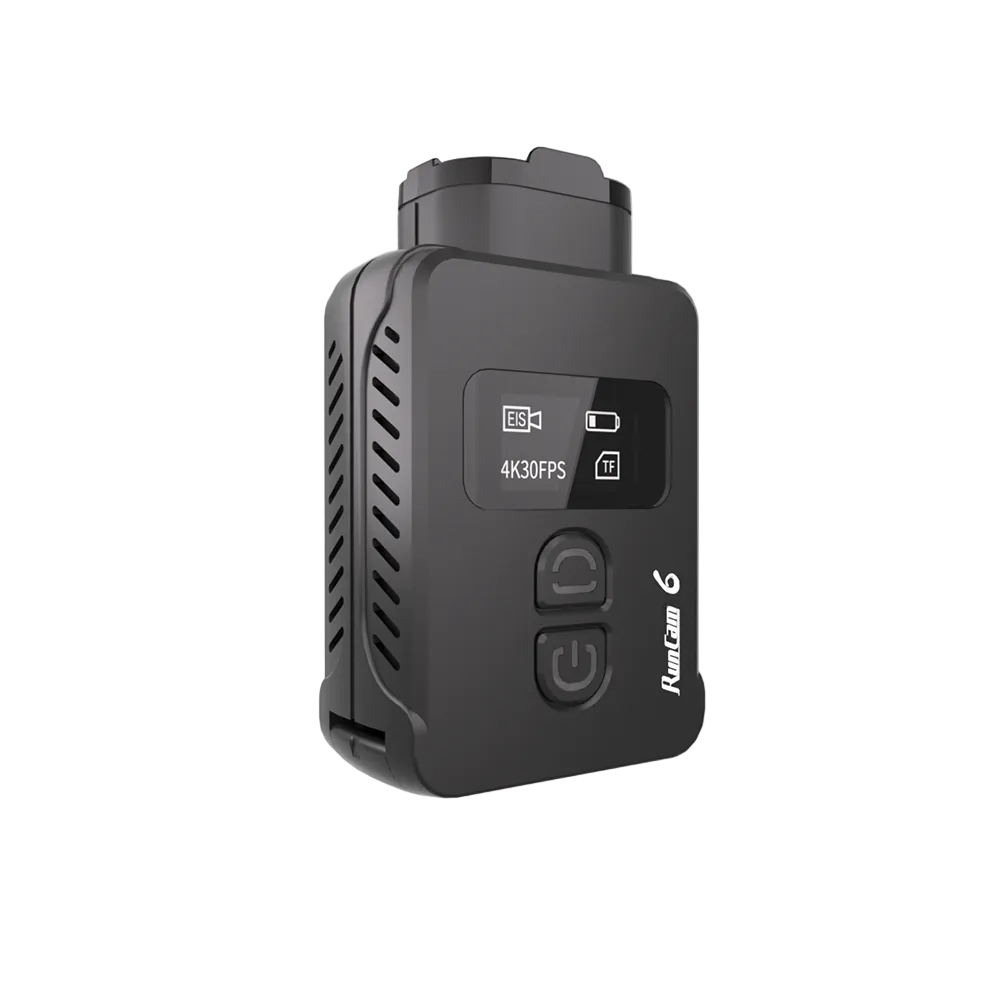

• 1. After downloading the firmware, unzip the downloaded file, find the RC6.BRN file and copy it to the root directory of the microSD card. The firmware name should be confirmed as RC6.BRN.
• 2. Disconnect from the computer, powering the camera via the mobile charger. And then turn on the camera with the micro SD card inserted. The camera will automatically update the firmware.
• 3. During the updating process,Light alternates quick-blinking blue Wi-Fi/Menu light and quick-blinkng red Power light.
• 4. After about 2-3 minute, the camera will automatically shutdown, the upgrade has completed.
